MetaHub Gateway

$145.00

The MetaHub is a bridge for the Bluetooth MetaSensors using WIFI/LAN.

The Gateway Hub receives sensor data from MetaSensors and either stores the data on the SD card memory or sends the data to the Cloud of your choice.

It can collect data from multiple MetaSensors at the same time. When configured with multiple USB to BLE dongles, the MetaHub detects up to 20 MetaSensors and provides data at up to 100Hz per device.

The MetaHub comes with pre-loaded MetaBase software that is used to configure the MetaSensors. The sensor data can be graphed live (streaming mode) on a screen or stored in memory (logging mode).

Further technical details are available via the tutorial page or below.

Out of stock

SKU: METAHUB Category: Tags: , ,

WHAT’S INCLUDED:

  • 1x Raspberry Pi 3 model B+
  • 1x AC Power Adapter with cable
  • 1x Black plastic case
  • 1x Micro SD Card with software pre-loaded (see below)
  • 1x Raspbian OS with MetaHub/MetaBase software and supporting libraries

ABOUT THE BUNDLE:

  • Plug-n-Play with a very simple configuration file and pre-loaded MetaBase software.
  • MetaHub connects Beacons and Sensors into existing WiFi/LAN networks to receive and transmit Bluetooth iBeacon, Eddystone, or Sensor data payload data over WiFi.
  • Includes software to enable transmission of raw data between sensors and the cloud.
  • Includes software to graph sensor data live on screen.
  • MetaHub can be configured to receive beacon advertisements from BLE beacons or sensor data from MetaSensors and transmitting them over WiFi to the cloud of your choice.

RETURNS & WARRANTY:

  • Limited warranty. See our terms.
  • If you have issues with your order, please contact us at hello@mbientlab.com.
  • Note: Sensor is not intended to diagnose, treat, mitigate, cure, or prevent any disease/condition.

For all customers:

  • You will be responsible for all the local taxes and custom duty
  • Return shipping will be paid by the customers

Sensors are designed in San Francisco, CA and assembled/manufactured in U.S.A, China and Korea.

Shipping

– Ships in 2-3 business days when in stock
– Ships via UPS and USPS

Dimensions

– L: 3.7in / 94mm x W: 2.47in / 63mm x H: 1.22in / 31mm

Weight

– 3.1 oz

Software

– Raspbian comes pre-installed with plenty of software for education, programming and general use. It has Python, Scratch, Sonic Pi, Java, Mathematica and more
– Raspbian is the RaspberryPi Foundation’s official supported operating system
– MetaHub software is pre-loaded with Raspbian. This includes a configuration file that will automatically provision the MetaSensors. Sensor data can be graphed live or stored on the SD card.

Board

– Raspberry Pi 3 model B+
– 1.4GHz 64-bit quad-core processor, dual-band wireless LAN, Bluetooth 4.2/BLE, faster Ethernet

Core

– Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
– 1GB LPDDR2 SDRAM
– 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
– Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps)
– Full-size HDMI
– 4 USB 2.0 ports
– Micro SD port for loading your operating system and storing data
– 5V/2.5A DC power input

Storage

– Micro SD card (provided).
– SanDisk 8GB or 16GB class 10

Power

– 2.5A 5V AC Adapter to micro USB
– Includes cable and wall-wart

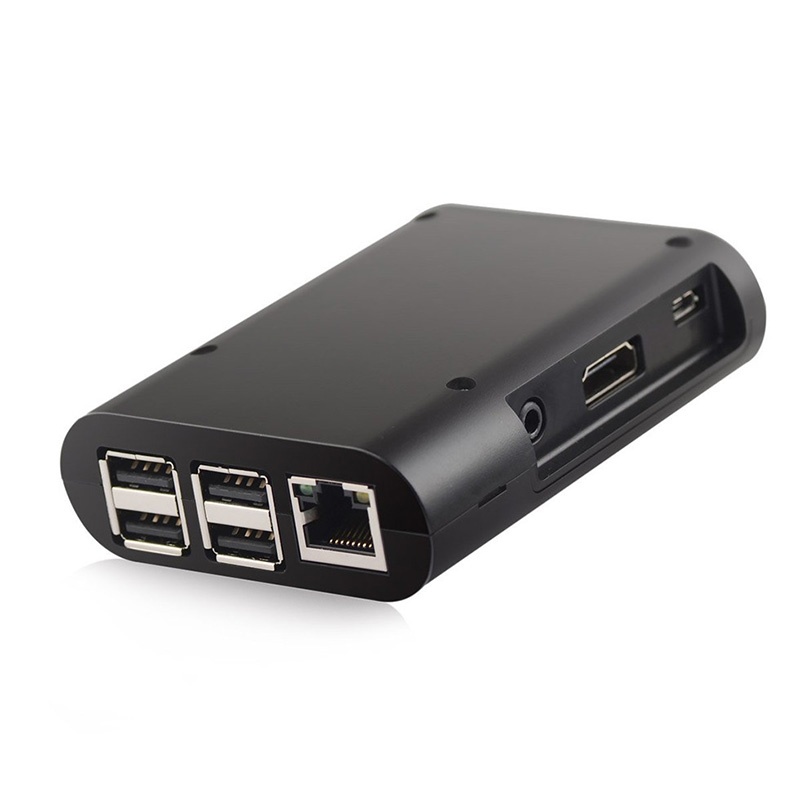

Case

– Black
– Three piece molded
– Screws together (4x screws)

Compliance

The Raspberry Pi 3 Model B+ has undergone extensive compliance testing, and meets the following European standards:
– Electromagnetic Compatibility Directive (EMC) 2014/30/EU
– Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU
The dual-band wireless LAN comes with modular compliance certification.
